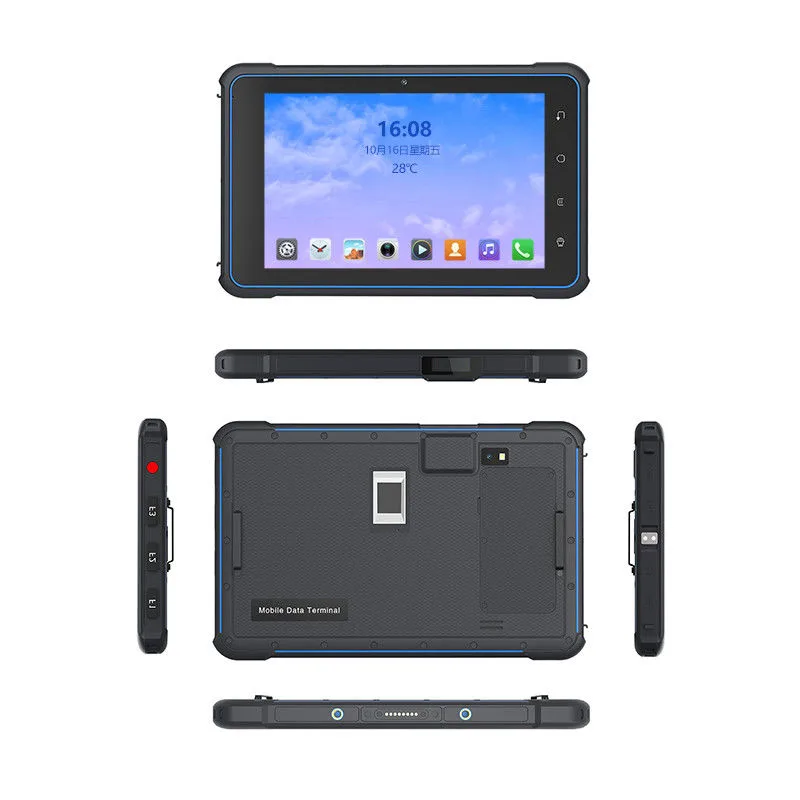

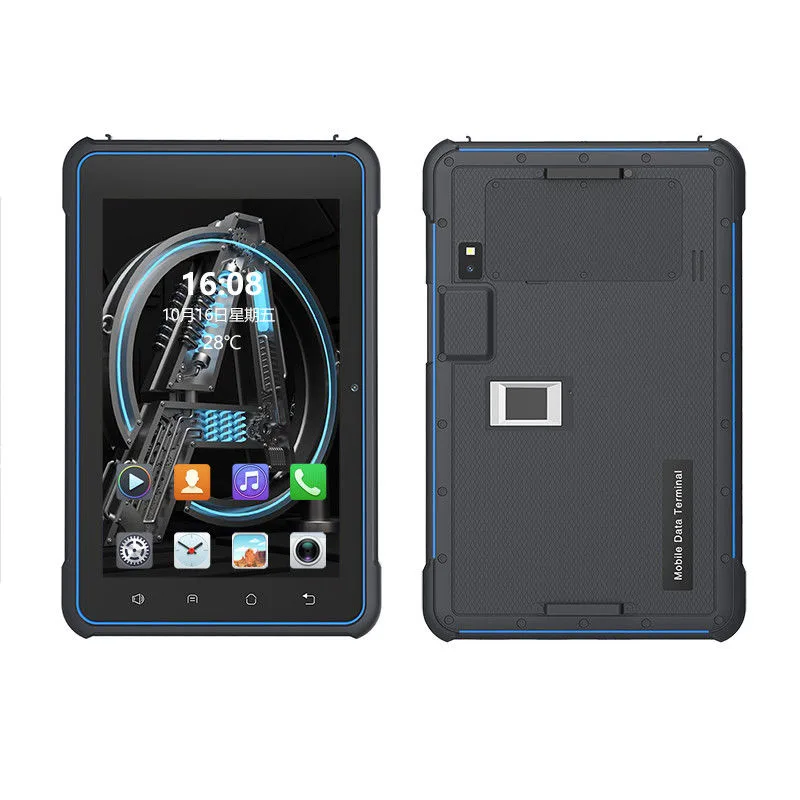

HGN801: 8 inch RK3399 rugged Android tablet with ID reader option
Handheld rugged, IP65. RK3399, Android9.0, 3GB + 32GB. OEM and ODM orders accepted.
- Model
- HGN801
- Screen
- 8"
- Chipset
- RK3399
- OS
- Android9.0
- RAM + storage
- 3GB + 32GB
- NFC
- 13.56MHZ optional
- Form
- Handheld rugged, IP65
- Minimum order
- 100PCS
HGN801 specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| processor | |
|---|---|
| CPU | RK3399 dual Cortex-A72+four Cortex-A53 core CPU structure, frequency 1.8GHZ |
| GPU | Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 support AFBC (frame buffer compression) |
| storage | |
| Running memory | 3GB/4GB (optional, 4GB is not currently supported) |
| Body memory | 32GB/64GB (optional, 64GB is not currently supported) |
| Extended support | 128GB |
| screen | |
| screen size | 8" TFT |
| Display resolution | 1. IPS HD800*1280； IPS FHD 1920*1200 (optional, currently does not support FHD) |
| touch screen | G+G, 10-point touch, COF, I2C interface, interface customization； support active capacitive pen |
| webcam | |
| Front | 5MP/2MP optional |
| Rear | 13MP/5MP/8MP optional |
| battery | |
| Types of | Two-cell lithium batteries in series, nominal voltage: 7.4V, with fuel gauge |
| capacity | About 5600mAH 7.4V |
| System Configuration | |
| Android system | Android9.0 |
| Language | support multi-languauge |
| Input | Standard Andriod soft keyboard (support third-party handwriting input method/support external hard keyboard) |
| Fingerprint recognition | |
|---|---|
| ID card recognition | |
| RFID | |
| RFID module | UHF RFID 902-928MHZ optional |
| NFC | |
| NFC module | 13.56MHZ optional |
| PSAM encryption card | |
| PSAM encryption card | Support 2 PSAM cards optional |
| QR code scanning | |
| QR code scanning module | One-dimensional & two-dimensional close-range scanning optional |
| Positioning module | |
| Positioning module | GPS+Beidou/GPS+Glonass/GPS+Beidou+Glonass optional |
| IP protection level | |
| stand by | IP65 |
| micro SD interface | |
|---|---|
| *1 | Support 8G/16G/32G/64G/128G |
| USB typeC | |
| *1 | Support OTG function |
| USB-A interface | |
| *1 | USB HOST2.0 |
| SIM card | |
| *1 | stand by |
| HDMI | |
| *1 | HDMI OUT |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
