LED displays, Android tablets and POS terminals, compared by spec
Shenzhen Hopestar is an OEM/ODM manufacturer. Check the numbers first, then send us the configuration you need.
| Model | Screen | Chipset | OS | RAM + storage | Resolution | PoE | NFC |
|---|---|---|---|---|---|---|---|

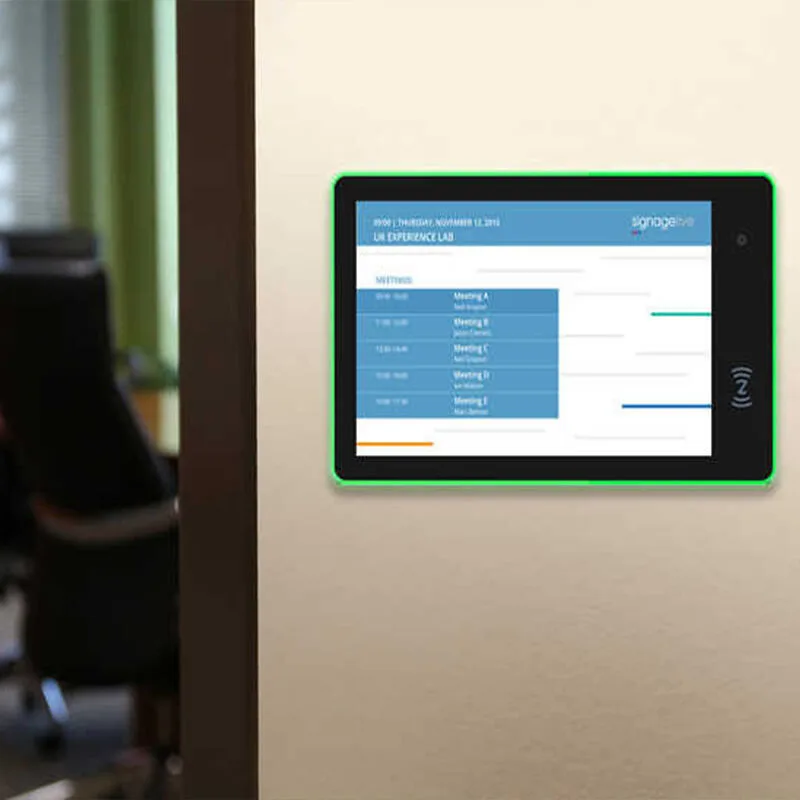

| WA8058TWall mount | 8" | - | Android | 2GB+16GB | - | Yes | Yes |
| HP1012TWall mount | 10.1" | - | Android 5.1 | - | 1280*800 | IEEE802.3at/af | - |
| WA1036TWall mount, LED light bar | 10.1" (13.3" / 15.6" optional) | RK3566 Quad Core | - | 2GB+16GB / 4GB+32GB | - | - | - |
| WL1026TL-shape desktop | 10.1" | RK3566 | Android 11 | 2/4GB + 16/32GB | 1280*800 | Yes | Yes |
| WH1018TWall mount, call handle | 10.1" | - | Android | 2GB/16GB (4+32GB optional) | 1280*800 | Yes | Support |
| HS-SHT1568Wall mount | 15.6" | RK3288 Quad-core Cortex A17, 1.6GHz | Android 8.1 | 2GB + 8GB | - | Yes | - |
| XR101TWall mount | 10.1" | - | Android | 2GB+16GB | - | Optional | Optional |
| WA1342TWall mount | 13.3" | RK3288, Quad-core Cortex A17, 1.6G | Android 5.1/8.1 | 2GB + 16GB | 1920*1080 | IEEE802.3at | - |
| WL1338TL-shape desktop | 13.3" | RK3576S/RK3568 | Android 15 | 4GB+64GB | - | Yes | - |
| WH1336TWall mount, call handle | 13.3" | RK3568 | Android 11 | 2GB + 16GB | - | - | - |
| WA1412TWall mount, LED surround | 14" | RK3566 | Android 11 | 2/4 GB + 16/32 GB | 1920x1080 | Optional | Optional |
| PW-1537TWall mount | 15.6" | RK3288 / RK3566 / RK3568 | Android 6.0 or 8.1 | 2GB + 8GB | 1920×1080 | Yes | Yes |
| WL1589TL-shape desktop | 15.6" | RK3399 | Android | 2GB/4GB + 16GB/32GB | - | Yes | Yes |
| HP1733TWall mount, VESA 75 | 17.3" | RK3399 | Android 7.1/9.0 | 2GB + 16GB | 1920 * 1080p | IEEE802.3at/af (option) | - |
| WL1718LL-shape desktop | 17.3" | RK3288 | Android | 2GB + 16/32GB | - | - | Optional |
| H2152TWall mount / desktop | 21.5" | RK3288 | Android 8.1 | 2GB + 16GB | 1920*1080 | - | - |
| WF1589TWall mount | 15.6" | RK3576 | Android 14 | 4GB + 32GB | - | - | - |
| WF2402TWall mount | 24" | RK3288 | Android 5.1/8.1 | 2GB + 16GB | 1920*1080 | - | - |
| HP2701TWall mount | 27" | RK3188 | Android 4.4.2 | 1GB + 16GB | 1920*1080 | - | - |
| SIN-H32Wall mount, portrait | 32" | RK3576 | Android 14 | 4GB + 32GB | - | - | - |
| HG805GHandheld rugged, IP65 | 8" | RK3399 | Android9.0 | 3GB + 32GB | 1280*800 | - | 13.56MHZ optional |
| HGN801Handheld rugged, IP65 | 8" | RK3399 | Android9.0 | 3GB + 32GB | - | - | 13.56MHZ optional |
| Series | Pixel pitch | Brightness (nits) | Cabinet / module (mm) | Refresh (Hz) | IP grade |
|---|---|---|---|---|---|

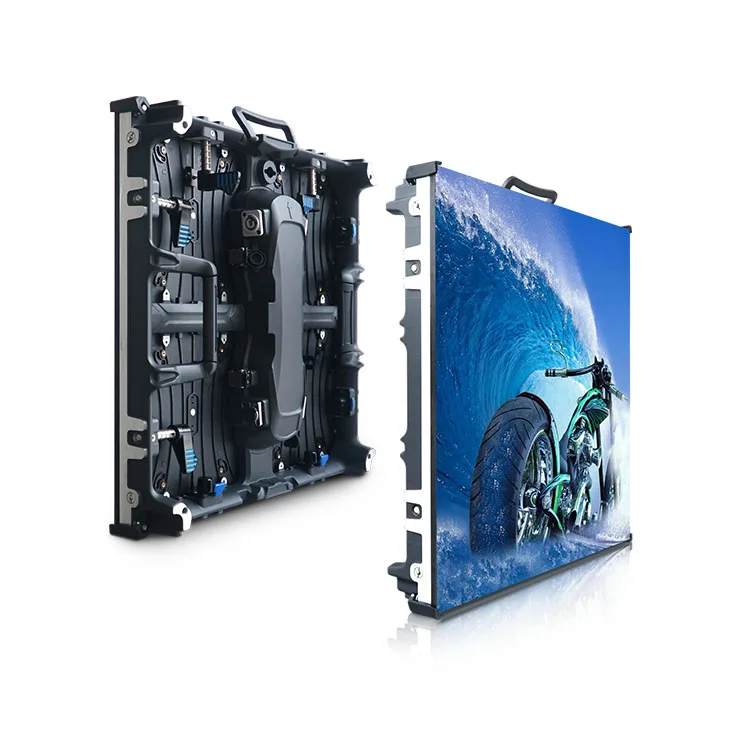

| Outdoor500x500 mm die-cast cabinet | P2.97, P3.91 | 5,000 | 500x500 | 1920-3840 | - |
| Outdoor960x960 mm cabinet, 320x320 modules | P6.67, P8, P10 | - | 960x960 | 1920-3840 | - |
| Outdoor960x960 mm cabinet, 240x240 modules | P6, P8, P10, P10, P12, P15, P16 | 6,000 / 7,500 | 960x960 | 1920~3840 | - |
| Outdoor960x960 mm cabinet, conventional module sizes | P3, P4, P5, P6, P8, P10 | 5,000 / 5,500 / 6,000 | 960x960 | 1920~3840 | - |
| IndoorP2 to P3 | P2, P2.5, P2.6, P2.9, P3 | 800-1,200 | 512x512 / 960x960 / 500x500 | 1920~3840 | - |
| IndoorP3.9 to P6 | P3.9, P4, P5, P6 | 800-1,200 | 500x500 / 1,024x768 / 960x960 | 1920~3840 | - |
| RentalIndoor rental, IP30 | P2.6, P2.97, P3.91 | 800-1200 / 1000-1200 | 500x500x85 / 500x1000x85 | 3840 | IP30 |
| RentalOutdoor rental, IP65 | P2.97T, P3.91T, P4.81T | 4000-4500 / 4500-5000 / 3500-4000 | 500x500x85 / 500x1000x85 | 3840 | IP65 |
| TransparentP2.6-5.2 | P2.6-5.2 | 3,500 | 1,000x500 | 1920-3840 | - |
| TransparentP7.81 and P10.416 | P7.81-7.81, P7.81-7.81, P10.416, P10.416 | 4,000 / 4,500 | 1,000x500 / 1,000x1,000 | 1920-3840 | - |
| Flexible240x120 mm soft modules | P1.875, P2.5, P3, P4 | 800-1,000 | 240X120 | 3,840 | - |
| FloorP2.97 to P5.2 | P2.97, P3.91, P5.2 | 1500-1800 | 500x500 / 500x1000 | 1920-3840 | front IP65, back IP32 |
| FloorP6.25 to P8.9 | P6.25, P7.8, P8.9 | Indoor 1800/ outdoor 4500 | 500x500 / 500x1000 | 1920-3840 | front IP45, back IP67 |
| Model | Screen | CPU | OS | RAM + storage | Resolution |
|---|---|---|---|---|---|

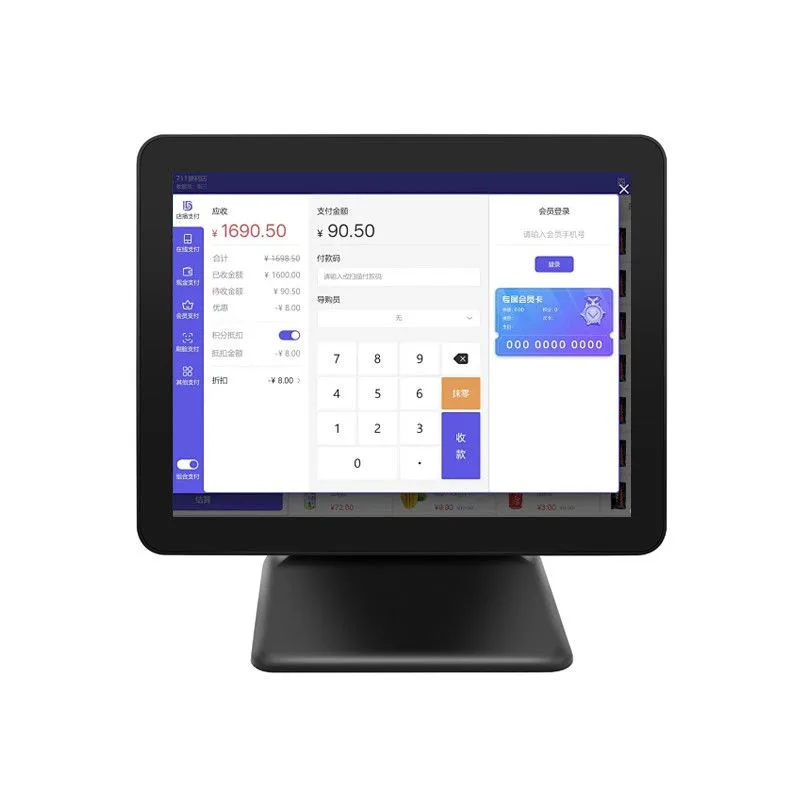

| HP1701SDesktop, single screen | 17" | N5095 | Win 10 | 8GB + 256GB | 1366*768 |
| HP-P1501Desktop, single screen | 15" | N100 | Win 10/11 | 8GB + 256GB | 1920X1080 |
| I8Self-service, wall or floor stand | 15.6" (18.5 to 32 inch options) | 1.7GHZ dual core CPU | Android, win10 | 8GB+128GB | 1366*768 |
| K11Desktop, dual screen | 15.6" dual screen | N2840 | Win7 | 2GB + 32GB | 1366*768 |
| HP525Desktop, camera arm | 10.1" (16:10) | RK3568 | Android | 2GB + 16GB | 1280*800 |
| POS-6000Handheld, built-in printer | 5.5" | MT6580 | Android | 2/4GB + 16/32GB | - |
Model numbers link to the full specification. Blank cells: ask for the current datasheet.
What the numbers mean for your project
Three parameters decide most selections.
Pixel pitch sets the viewing distance
Pitch is the distance between LED pixels in millimeters. A common rule of thumb: the closest comfortable viewing distance in meters is about the pitch in millimeters. P2.6 suits a lobby wall, P8 suits a roadside screen.
Finer pitch means more pixels per square meter and higher cost per area. Pick the coarsest pitch that still looks solid from where the audience stands.
Brightness separates indoor from outdoor
Our indoor series run at 800 to 1,200 nits. Outdoor fixed cabinets run at 5,000 nits and above so the image holds in daylight. Do not put an indoor panel behind sunlit glass and expect it to read.
PoE class decides the switch port
IEEE 802.3af delivers up to 12.95 W at the device. 802.3at delivers up to 25.5 W. A 10.1 inch tablet rated at 12 V / 1.5 A sits above the af budget, so plan for at ports. Larger screens need at or a DC supply.
Chipset generation decides Android version
RK3288 is a quad-core Cortex-A17 part and appears on our long-running models. RK3566 and RK3568 are quad-core Cortex-A55 and list Android 11 and later. RK3576 models ship with Android 14. If your app targets a recent API level, start from the chipset column.
Boundaries worth knowing before you ask
- Tablets ship on AOSP Android. Builds without Google Mobile Services, open ADB and custom launchers are available. Say which you need.
- IP ratings apply only where a specification lists one. The HG805G rugged tablet is listed at IP65. Wall mount tablets are indoor devices.
- Medical series tablets are information and call terminals. They are not certified medical devices.
- LED brightness, power and weight are per series and per pitch. Use the series tables, not a single headline number.
- Gaming and consumer monitors are not part of this site. We list commercial and industrial hardware only.
OEM and ODM scope
Most orders ship with a customer logo, custom boot screen and preloaded app. Hardware options are chosen per model.
See the full scope- Logo: silk print, metal badge or boot animation
- User manual, color box, carton and labels
- Product label and adapter label
- Preloaded apps and custom launcher
- Firmware changes, open ADB, builds without GMS
- Peripherals: barcode scanner, RFID, NFC, fingerprint, PoE, 4G
Interfaces and integration
What connects to what. Availability depends on the model, see each specification.
LED displays
Android tablets
POS terminals
