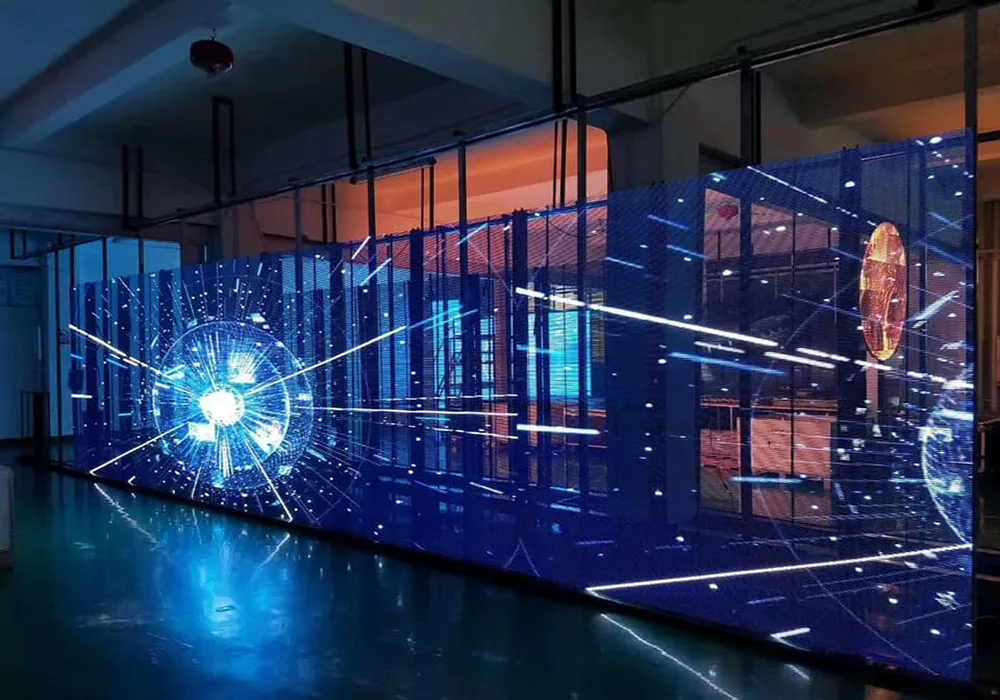

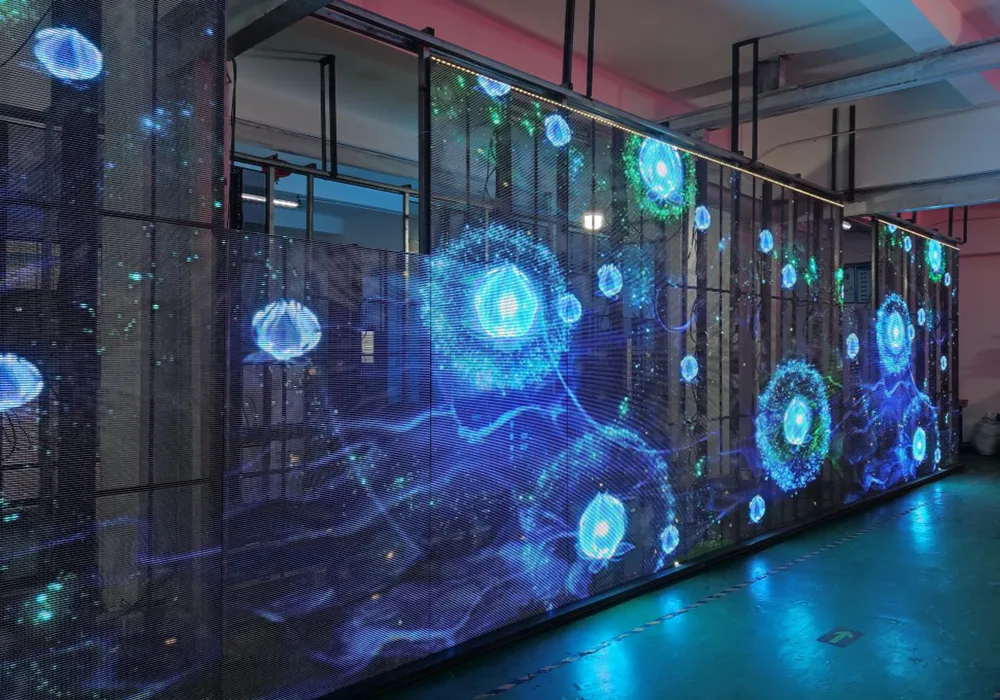

Transparent LED display for glass walls and shopfronts

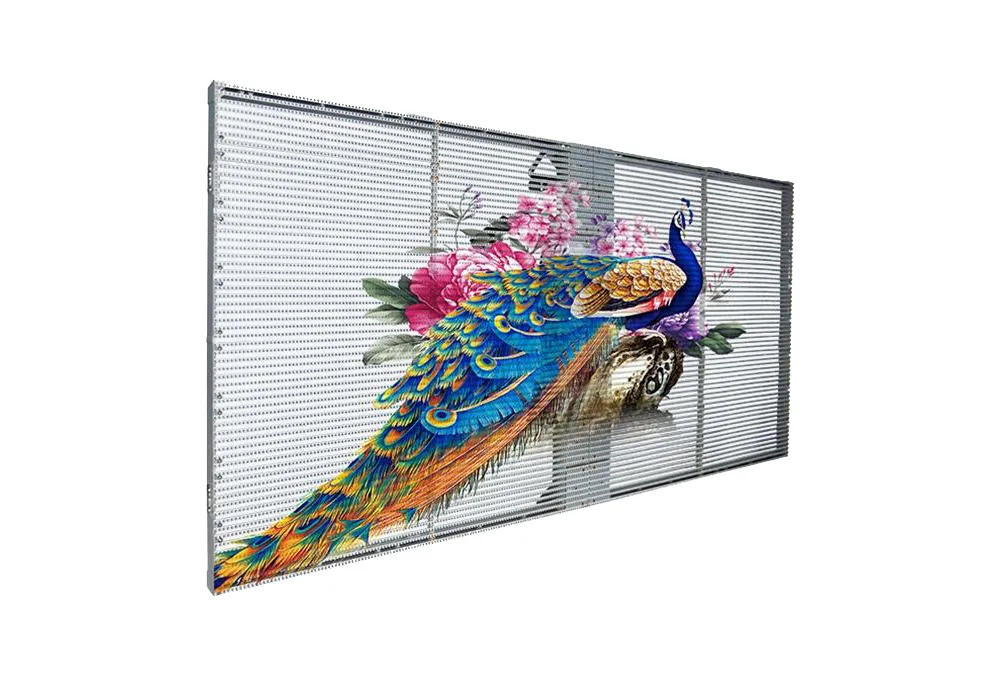

See-through LED cabinets that mount behind glass. Transparency runs from 48 to 60 percent depending on pitch.
Transparent LED display specifications
| Model | P2.6-5.2 |
|---|---|
| Pixel pitch(mm) | P2.6-5.2 |
| Pixel composition | 1R1G1B |
| Pixel density(dots/m²) | 32,768 |
| LED type | SMD1921 |
| Permeability(%) | 48 |
| Scan mode | 1/8 |
| Module size(mm) | 500×125 |
| Cabinet size(mm) | 1,000x500 |
| Brightness(cd/m²) | 3,500 |
| Power max./Avg.(W/m²) | 800/250 |
| Module resolution(dots) | 128x16 |
| Cabinet Weight(kg) | 5.3 |
| Refresh rate(Hz) | 1920-3840 |
| Grayscale(bit) | 12-16 |
| AC input voltage | 110/220V |
| Power input frequency | 50HZ |
| Working Temperature | -20~60 ℃ |
| Working humidity | 10 ~90% |
| Model | P7.81-7.81 | P7.81-7.81 | P10.416 | P10.416 |
|---|---|---|---|---|
| Pixel pitch(mm) | 7.81x7.81 | 7.81x7.81 | 10.416 | 10.416 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel density(dots/m²) | 16,384 | 16,384 | 9,216 | 9,216 |
| LED type | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Permeability(%) | 55 | 55 | 60 | 60 |
| Scan mode | 1/4 | 1/4 | 1/2 | 1/2 |
| Module size(mm) | 500×125 | 500×125 | 500×125 | 500×125 |
| Cabinet size(mm) | 1,000x500 | 1,000x1,000 | 1,000x500 | 1,000x1,000 |
| Brightness(cd/m²) | 4,000 | 4,000 | 4,500 | 4,500 |
| Power max./Avg.(W/m²) | 550/150 | 550/150 | 800/250 | 800/250 |
| Module resolution(dots) | 64x16 | 64x16 | 48x12 | 48x12 |
| Cabinet Weight(kg) | 5.3 | 9 | 5 | 9 |
| Refresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Grayscale(bit) | 12-16 | |||
| AC input voltage | 110/220V | |||
| Power input frequency | 50HZ | |||
| Working Temperature | -20~60 ℃ | |||
| Working humidity | 10 ~90% | |||
Transparency against resolution
Finer pitch gives a sharper image and lower transparency: 48 percent at P2.6-5.2 and 60 percent at P10.416. Choose by how much daylight the space behind needs.
Brightness behind glass
The series lists 3,500 to 4,500 nits so content stays readable in a sunlit window.
Specify these in your inquiry
- Indoor or outdoor, and the closest viewing distance.
- Screen width and height, or total area.
- Fixed installation or rental, front or rear service access.
- Control system or receiving card preference.
- Mains voltage at the site.
- This series is cabinet based, not adhesive film.
