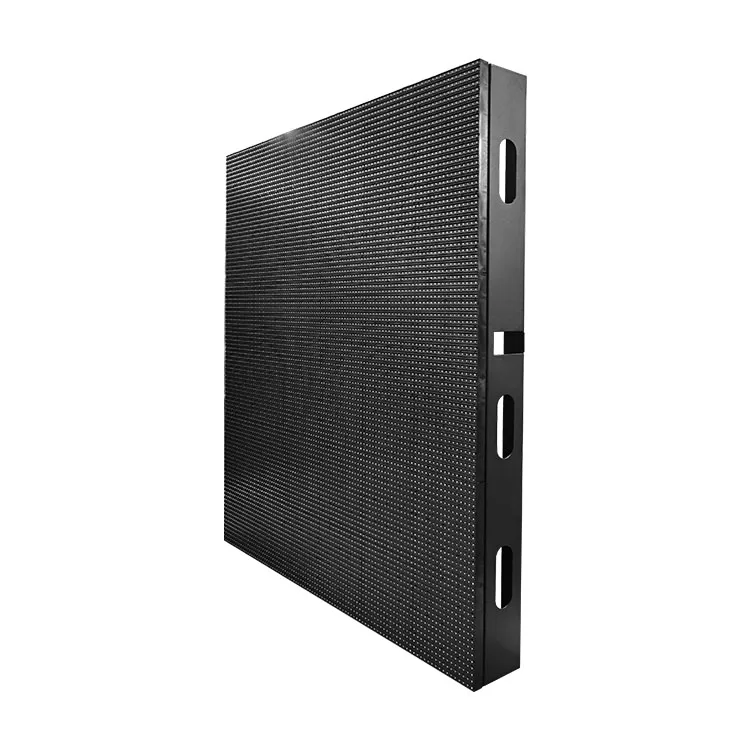

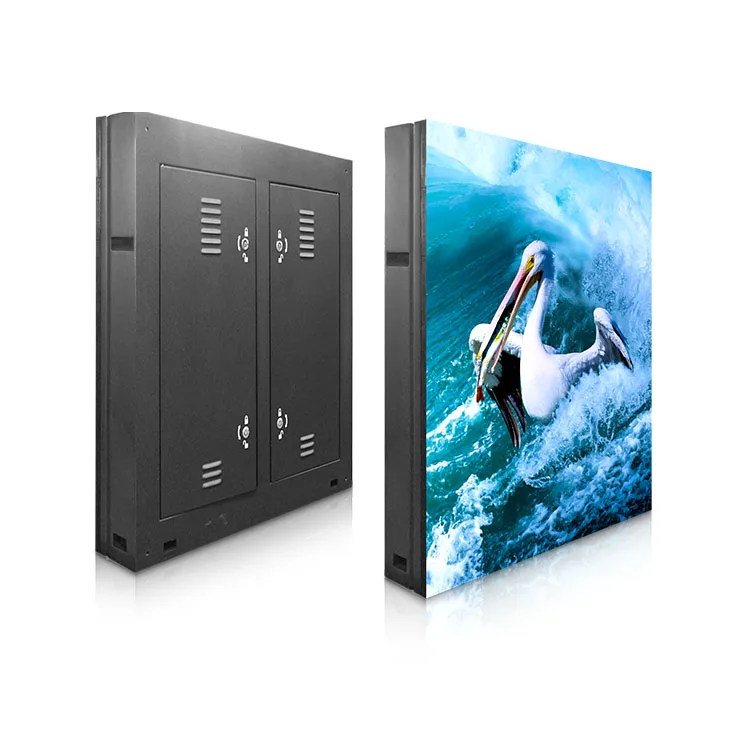

Outdoor LED display: P2.97 to P16 cabinets
Four cabinet families for billboards, building facades and stadium perimeter screens, from P2.97 to P16.
Outdoor LED display specifications
| Model | P2.97 | P3.91 |
|---|---|---|
| Pixel Pitch(mm) | 2.97 | 3.91 |
| Pixel Composition | 1R1G1B | 1R1G1B |
| LED Type | SMD | SMD |
| Pixel density(dots/m²) | 112,896 | 65,536 |
| Cabinet Size(mm) | 500x500 | 500x500 |
| Cabinet Resolution(dots) | 168x168 | 128x128 |
| Module Size(mm) | 250x250 | 250x250 |
| Module Resolution(dots) | 84x84 | 64x64 |
| Cabinet Material | Die-casting Aluminum | |
| Cabinet Weight(kg) | 8.5 | 8.5 |
| Brightness(cd/m²) | 5,000 | 5,000 |
| Power Max./Avg.(W/㎡ ) | 1000/450 | 875/300 |
| Refresh Rate (Hz) | 1920-3840 | |
| Gray Scale(bit) | 12-16 | |
| Input Voltage | AC100~240V/50~60Hz | |
| Working Temperature(℃) | -30℃~60℃ | |
| Installation/Maintenance | Front / Rear | |
| Life Span | 100,000 hours | |
| Mtbf | >10,000 hours | |
| Model | P6.67 | P8 | P10 |
|---|---|---|---|
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Pixel density(dots/m²) | 22,477 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 |
| Cabinet Resolution(dots) | 144x144 | 120x120 | 96x96 |
| Module Size(mm) | 320x320 | 320x320 | 320x320 |
| Module Resolution(dots) | 48x48 | 40x40 | 32x32 |
| Cabinet Material | Iron / Aluminum | ||
| Cabinet Weight(kg) | 32.5KG(Iron) | ||
| Power Max./Avg.(W/㎡ ) | 800/300 | 800/300 | 800/300 |
| Refresh Rate (Hz) | 1920-3840 | ||
| Gray Scale(bit) | 12-16 | ||
| Input Voltage | AC100~240V/50~60Hz | ||
| Working Temperature (℃) | -30℃~60℃ | ||
| Installation/Maintenance | Front / Rear | ||
| Life Span | 100,000 hours | ||
| Mtbf | >10,000 hours | ||
| Model | P6 | P8 | P10 | P10 | P12 | P15 | P16 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch(mm) | 6 | 8 | 10 | 10 | 12 | 15 | 16 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD2727 | SMD3535 | SMD3535 | DIP 346 | DIP 346 | DIP 346 | DIP 346 |
| Pixel Density(dots/m²) | 27,777 | 15,625 | 10,000 | 10,000 | 6,944 | 4,444 | 3,906 |
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Resolution(dots) | 160X160 | 120x120 | 96x96 | 96x96 | 80x80 | 64x64 | 60x60 |
| Module Size(mm) | 240X240 | 240X240 | 240X240 | 240X240 | 240X240 | 240X240 | 240X240 |
| Module Resolution(dots) | 40x40 | 30x30 | 24x24 | 24x24 | 20x20 | 16x16 | 15x15 |
| Cabinet Material | Iron / Aluminum | ||||||
| Cabinet Weight(kg) | around 45 kg/m² (Iron) ; around 32 kg/m² (Aluminum) | ||||||
| Brightness(cd/c) | 6,000 | 6,000 | 6,000 | 7,500 | 7,500 | 7,500 | 7,500 |
| Power Max./Avg.(W/m²) | 800/300 | 750/300 | 780/300 | 550/200 | 550/200 | 550/200 | 550/200 |
| Refresh Rate(Hz) | 1920~3840 | ||||||
| Gray Scale(bit) | 12 ~ 16 | ||||||
| Input Voltage | AC100~240V/50~60Hz | ||||||
| Working Temperature | -30℃~60℃ | ||||||
| Installation/Maintenance | Front/ rear | ||||||
| Life Span | 100,000 hours | ||||||
| Mtbf | >10,000 hours | ||||||
| Model | P3 | P4 | P5 | P6 | P8 | P10 |
|---|---|---|---|---|---|---|
| Pixel Pitch(mm) | 3 | 4 | 5 | 6 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density(dots/m²) | 111,111 | 62,500 | 40,000 | 27,777 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Resolution(dots) | 320x320 | 256x256 | 192x192 | 160x160 | 128x128 | 96x96 |
| Module Size(mm) | 192x192 | 256x128 | 320x160 | 192x192 | 256x128 | 320x160 |
| Module Resolution(dots) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 |
| Cabinet Material | Iron / Aluminum | |||||
| Cabinet Weight(kg) | around 45 kg/m² (Iron) ; around 32 kg/m² (Aluminum) | |||||
| Brightness(cd/c) | 5,000 | 5,500 | 6,000 | 6,000 | 6,000 | 6,000 |
| Power Max./Avg.(W/m²) | 1100/300 | 800/300 | 850/300 | 850/300 | 800/300 | 800/300 |
| Refresh Rate(Hz) | 1920~3840 | |||||
| Gray Scale(bit) | 12 ~ 16 | |||||
| Input Voltage | AC100~240V/50~60Hz | |||||
| Working Temperature | -30℃~60℃ | |||||
| Installation/Maintenance | Rear | |||||
| Life Span | 100,000 hours | |||||
| Mtbf | >10,000 hours | |||||
Choosing the pitch
P2.97 and P3.91 on 500 x 500 mm die-cast cabinets suit close outdoor viewing such as plazas and storefronts. P6 to P10 on 960 x 960 mm cabinets suit roadside and rooftop screens. P12 to P16 DIP modules suit long-distance signs.
Weight and structure
The 960 x 960 mm families list about 45 kg per square meter in iron and about 32 kg in aluminum. Send the structure limits early so the cabinet material can be chosen.
Specify these in your inquiry
- Indoor or outdoor, and the closest viewing distance.
- Screen width and height, or total area.
- Fixed installation or rental, front or rear service access.
- Control system or receiving card preference.
- Mains voltage at the site.
