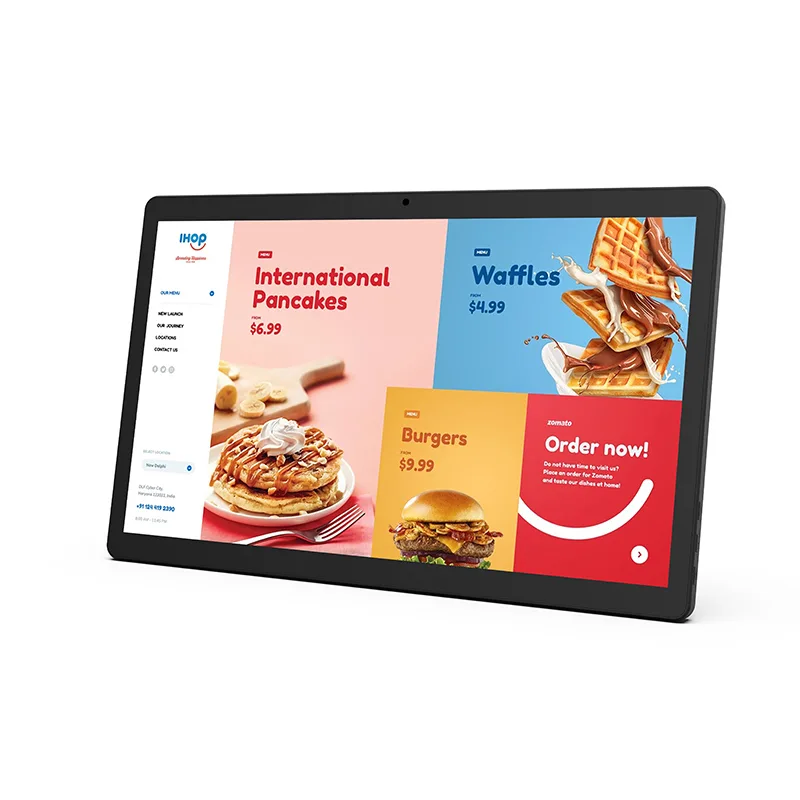

WF1589T: 15.6 inch RK3576 Android 14 wall mount tablet
Wall mount. RK3576, Android 14, 4GB + 32GB. OEM and ODM orders accepted.
- Model
- WF1589T
- Screen
- 15.6"
- Chipset
- RK3576
- OS
- Android 14
- RAM + storage
- 4GB + 32GB
- Form
- Wall mount
- Minimum order
- 100PCS
WF1589T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| System | |
|---|---|
| CPU | rk3576 |
| RAM | 4GB |
| Internal memory | 32GB |
| Operation system | Android 14 |
| Touch | 10-Point capacitive touch |
| Display | |
| Panel | 15.6"LCD full H//D panel |
| Resolution | 1920*1080 |
| Active area | 474.64(H)x 268.11 mm(V) |
| Viewing angle | 89/89/89/89(L/R/U/D) |
| Contrast ratio | 1000 |
| Luminance | 250cdm2 |
| Aspect Ratio | 16:9 |
| Network | |
| WiFi | 802.11b/g/n/ac,2.4G+5G |
| 3G | 3G USB dongle ext. |
| Ethernet | 100M/1000M Ethernet |
| BT | BT 4.0 |
| Interface | |
| Card slot | SD,Support up to 32GB |
| USB Device | Mini USB OTG |
| USB Hostx3 | USB Host 3.0 |
| Power Jack | DC power input |
| RJ45 | Ethernet |
| Earphone | 3.5mm earphone |
| Media plays | |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| Other | |
| Speaker | 2*3W |
| VESA | 100x100mm |
| Camera | 2.0MP,Front |
| Micphone | yes |
| Language | Multi-language |
| Working temp | 0--40degree |
| Accessories | |
| Adapter | Adapter,12V,3A |
| User manual | yes |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
