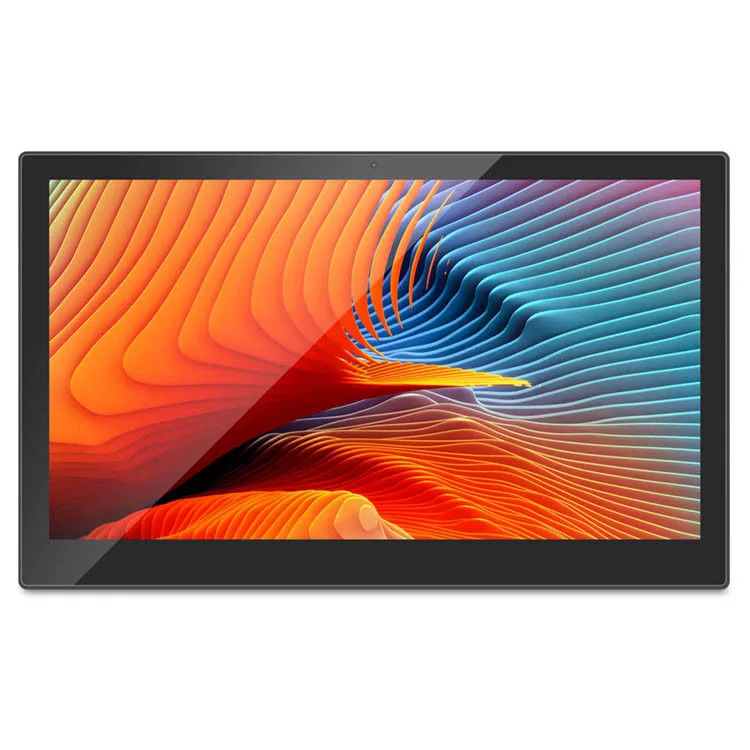

HP1733T: 17.3 inch RK3399 wall mount Android tablet, PoE option
Wall mount, VESA 75. RK3399, Android 7.1/9.0, 2GB + 16GB. OEM and ODM orders accepted.
- Model
- HP1733T
- Screen
- 17.3"
- Chipset
- RK3399
- OS
- Android 7.1/9.0
- RAM + storage
- 2GB + 16GB
- Resolution
- 1920 * 1080p
- PoE
- IEEE802.3at/af (option)
- Form
- Wall mount, VESA 75
- Minimum order
- 100PCS
HP1733T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| System | |
|---|---|
| CPU | Dual-core A72 + quad-core A53, 2.0GHz, RK3399 |
| RAM | 2GB |
| Internal Memory | 16GB |
| Operation System | Android 7.1/9.0 |
| Touch Screen | 10-Point capacitive touch |
| Display | |
| Panel | 17.3" LED IPS panel |
| Resolution | 1920 * 1080p |
| Active Area | 381.89mm (H) * 214.81mm (V) |
| Display Mode | Normally black, IPS |
| Viewing Angle | 85/85/85/85 (L/R/U/D) IPS |
| Contrast Ratio | 5000:1 |
| Luminance | 300cd/m² |
| Aspect Ratio | 16:10 / 16:9 |
| Network | |
| WiFi | 802.11b/g/n |
| 3G Dongle | 3G USB dongle external |
| Ethernet | 100M/1000M |
| Bluetooth | Bluetooth 4.0 |
| Interface | |
| USB | 3 * USB Host |
| Micro USB | Mini USB OTG |
| RJ45 | RJ45 with POE |
| Power Jack | DC power input |
| HDMI | HDMI output |
| POE (Option) | IEEE802.3at/af |
| Earphone | 3.5mm earphone jack |
| Media Playback | |
| Video Format | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV, etc. (up to 1080p) |
| Audio Format | MP3, WMA, AAC, etc. |
| Photo | JPEG, MP4 |
| Others | |
| VESA | 75 * 75mm wall mounting |
| Speaker | 2 * 1.5W |
| Camera | 2.0MP Front camera |
| Language | Multi-language support |
| Accessories | Adapter (12V/2A), User manual |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
