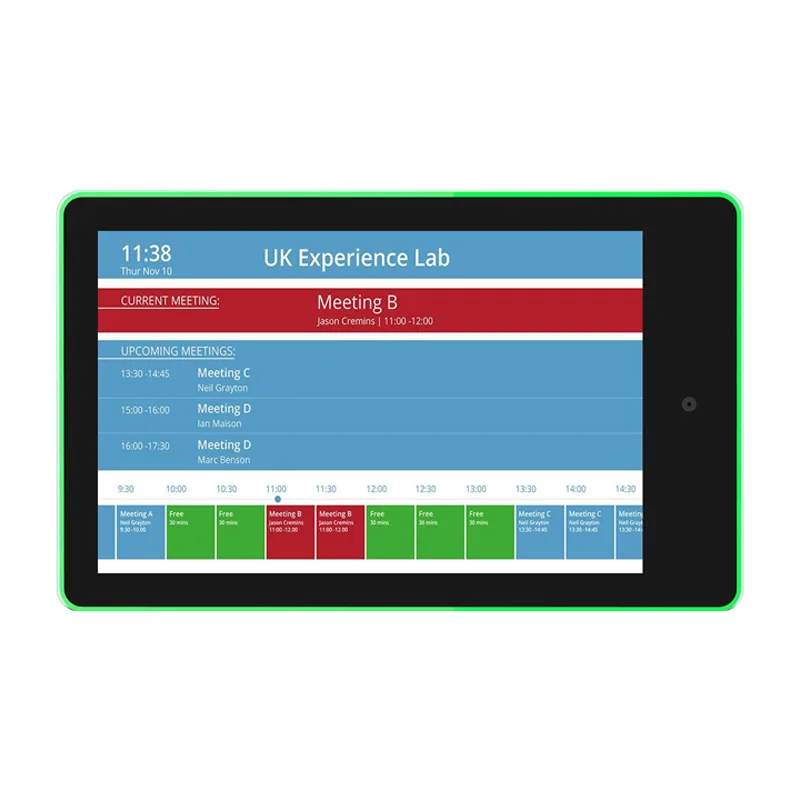

WA1036T: 10.1 inch RK3566 meeting room tablet with LED light bar
Wall mount, LED light bar. RK3566 Quad Core, 2GB+16GB / 4GB+32GB. OEM and ODM orders accepted.
- Model
- WA1036T
- Screen
- 10.1" (13.3" / 15.6" optional)
- Chipset
- RK3566 Quad Core
- RAM + storage
- 2GB+16GB / 4GB+32GB
- Form
- Wall mount, LED light bar
- Minimum order
- 1
WA1036T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| CPU | RK3566 Quad Core |
|---|---|
| Size | 10.1inch optional 13.3inch 15.6inch |
| Panel | LCD IPS |
| RAM/ROM | 2GB+16GB/4GB+32GB |
| Touch Screen | Capacitive Touch Screen |
| Interface | USB / RJ45 / SD / Earphone SIM Card Slot |
|---|---|
| Charging Interface | USB Type A |
| Touch | 10-Point Capacitive Touch |
| Luminance | 250cdm2 |
| Speaker | Built In Speaker 2x 2w |
| Camera | 5.0M/P,front Camera |
| Earphone | 3.5mm Earphone |
| USE | Meeting Room Booking Commercial Display |
| Aspect Ratio | 16:10 |
| Mounting Options | Wall Mount |
| Poe | Optional |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
